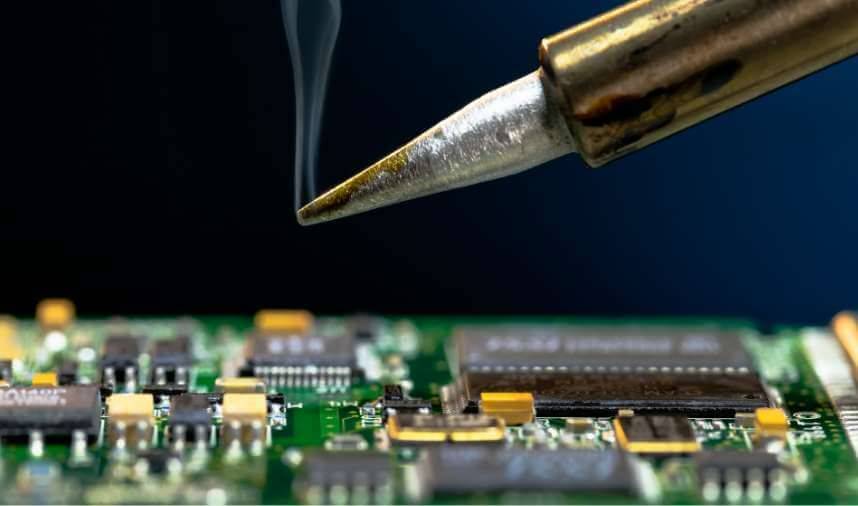

Quick soldering tips are used for consistency and precision work

Quick soldering tips are consumable parts of iron stations. Choosing the correct model is not as easy as one may think, as there is no universal global standard for the tips. Almost every manufacturer develops its own solution, and every user chooses them based on their preferences. Even if there is no standard, that does not mean the shape and size do not make a difference. On the contrary - even the tiniest variation of the shape and size can substantially affect the efficiency and precision of the work.

The tips are mainly divided depending on the design of a soldering station, as the professional operator often needs different ones to complete a task. Quick soldering tips are used in hand soldering, which is preferential for smaller-scale printed circuit board assembly. The wave soldering machine process is used in larger-scale PCB assembly where accuracy and quick turnaround are crucial.

Precision and efficiency depend on selecting the right quick soldering tips for the assignment

The wave soldering machine process is effective whenever there is a requirement for consistency, and hand soldering is best for places harder to access. The latter procedure is joining components by applying pressure, which develops a solvable persistent connection. Choosing the shape is vastly dictated by the individual preferences of the professional. That means beginners should test out multiple available on the market to select the one that best suits their working procedure. If you are hand or PCB wave soldering is paramount to get the right tools for the intended job.

Some quick soldering tips are purposeful for accuracy and light-duty use, while others are ideal for heavy-duty work. Chisel tips are the most popular shape and are perfect for a wide range of tasks. They spread the heat evenly and can be used for detachment tasks. Hoof tips have a slight concave impression on the back, which can help spread the liquid. They are most suitable for connecting multiple surface mount part pins simultaneously.

Knife tips have a unique edge, allowing them to reach slotted cavities others cannot. It is most suitable for fixing bridges. Conical tips are used for exactitude joining as the small cone-shaped tip can concentrate heat on the small area. Unlike the wave soldering machine process, the tips are used for precision work as they can reach the connector effortlessly and smoothly. The application you plan to undertake with the required stability is all you need to know before selecting the tips.

PCB wave soldering is a cost-effective and efficient process

The wave soldering machine process is (unlike quick soldering tips) used for large-scale PCB assembly. A highly efficient method was developed by Albert Hanson, a German inventor, who wanted to ensure a consistent assembly technique of hundreds of components on a PCB. Due to minimising the boards and the components, this procedure is used less in assembly than in previous years. However, it is still essential in many ways - for example, when the printed circuit board assembly uses a mix of SMT and leaded components. The method connects the components to a PCB in seconds, guaranteeing the electrically and mechanically reliable joints.

With this technique, the PCB is passed with the help of a conveyor belt over a pan of molten solder. An attached pump under a conveyor belt causes a wave-like movement of molten liquid, resembling a wave crashing onto the surface. PCB wave soldering ensures constant, reliable and meticulous results. It is most suitable for high-quality assembly requirements. State-of-the-art equipment allows adjustment of parameters for exact results, uses less power and offers optimal preheating and welding control. While improving production efficiency, it is also a cost-effective method.

How does PCB wave soldering work?

Quick soldering tips used in hand soldering are great for continuous and faultless results, but such a process is not practical for mass production. With the increased popularity of electronic devices and the need for their excellence, new methods were designed - including PCB wave soldering. This technique follows five basic steps, starting with solder melting at temperatures ranging from 180 to 450 °C.

This step guarantees effectiveness, smoothness, purity and superior results throughout the procedure. The second step is the meticulous cleaning process of the components. That includes thorough inspection for the presence of oxide layers using an engineered blend of activators and based materials called flux. This specialised chemical removes oxides from metal surfaces and ensures better results.

The third step in the wave soldering machine process is PCBA placement, where the components are meticulously positioned and secured to the board. Stability and unintended movement are prevented by using sturdy metal clasps. Step four is where the soldering takes place and secures components onto a board. The process is concluded by step five - cleaning. Refinement is reached by ensuring the PCB is free of residual flux so the product is ready for its intended purpose.
