Cleanroom ISO Classes Define Air Cleanliness

Cleanroom iso classes help establish the required cleanliness classification and environmental conditions. An effective structure needs to maintain sterility, support the procedures taking place inside it, manage personnel and material movement, use energy sensibly, and remain practical to operate over time. Optimal sanitation practices are ensured by a globally recognized framework of ISO cleanroom standards.

The classification of cleanroom environments affects space, ventilation, filtration, pressure monitoring, personnel practices, monitoring, equipment selection, and operating costs. It is determined by measuring airborne particle concentrations at predefined sampling locations and comparing the results with the maximum particle concentrations specified by ISO 14644-1.

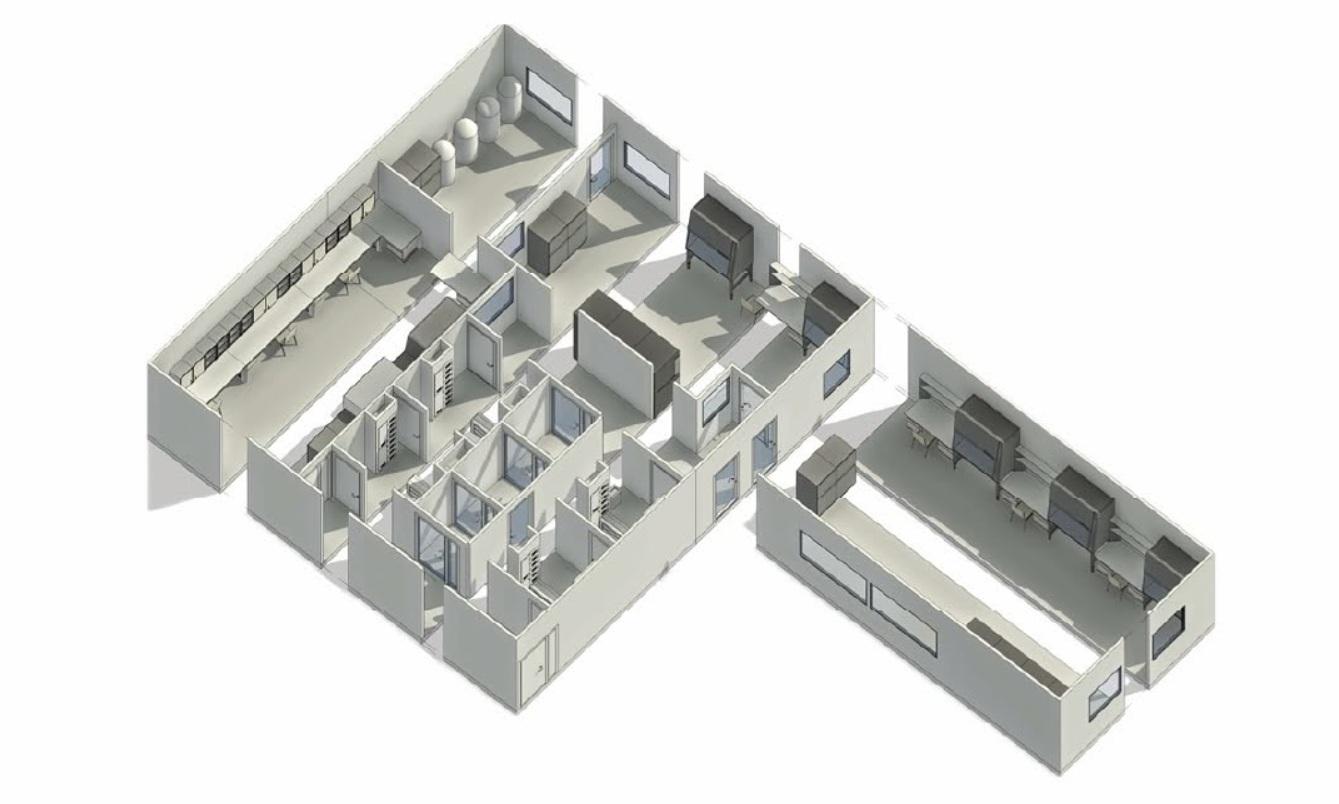

Planning Efficient Cleanroom Environments

Cleanroom ISO classes affect ventilation, filtration, layout, pressure monitoring, personnel procedures, monitoring, and operating costs. Effective planning starts with the process inside the area and defining the required classification. This depends on providing the conditions the process actually needs.

The layout must be planned around materials and people because its efficiency is strongly influenced by movement. A well-planned layout reduces unnecessary movement, supports contamination control, and can improve productivity. The airflow must be planned carefully, as its patterns are important. The design determines how air enters the structure, how it moves through the working area, and how it leaves. ISO cleanroom standards define how clean the air must be within a regulated setting. An effective design balances pressure, contamination, humidity, and temperature control. To plan a successful structure, it is crucial to consider energy efficiency from the beginning and to choose materials carefully.

What Are ISO Cleanroom Standards?

Cleanroom ISO classes, established by ISO 14644-1:2015, categorize air purity based on the concentration of airborne particles equal to or larger than specified particle sizes. The system ranges from ISO Class 1 to ISO Class 9 and considers the number of particles in a cubic meter of air. The particle sizes include 0.1 µm, 0.2 µm, 0.3 µm, 0.5 µm, 1 µm, and 5 µm, while the maximum concentration permitted depends on the particle size being measured and the class.

ISO Class 2 allows up to 100 particles per cubic meter at 0.1 µm, 24 particles per cubic meter at 0.2 µm, and 10 particles per cubic meter at 0.3 µm, while ISO Class 9 permits up to 35,200,000 particles per cubic meter at 0.5 µm, 8,320,000 at 1 µm, and 293,000 at 5 µm. Particle size matters because it significantly influences cleanroom environments. Larger particles settle more quickly depending on conditions and airflow patterns, while smaller particles can remain suspended in the air for extended periods.

How Are Cleanroom ISO Standards Determined?

Cleanroom ISO classes are determined by measuring the concentration of airborne particles inside a construction and comparing the results with the limits set by ISO 14644-1:2015. Before particles are counted, the room's classification conditions need to be defined, and ISO 14644-1 recognizes three occupancy states: as-built, at-rest, and operational. These are critical because a space produces very different particle counts when it is empty compared with when manufacturing processes are active.

The standards are also determined by establishing the required class and sampling locations. The limits give the team criteria against which the measured results will be assessed. Sampling locations need to provide representative coverage of the construction. Once the locations are determined, the next step is to select the particle size range (0.1 µm to 5 µm) and use a calibrated particle counter. The amount of sampled air matters, so it is essential to calculate the required sample volume, measure the air at the chosen locations, apply the statistical criteria, compare the results with the limits, and confirm the classification.

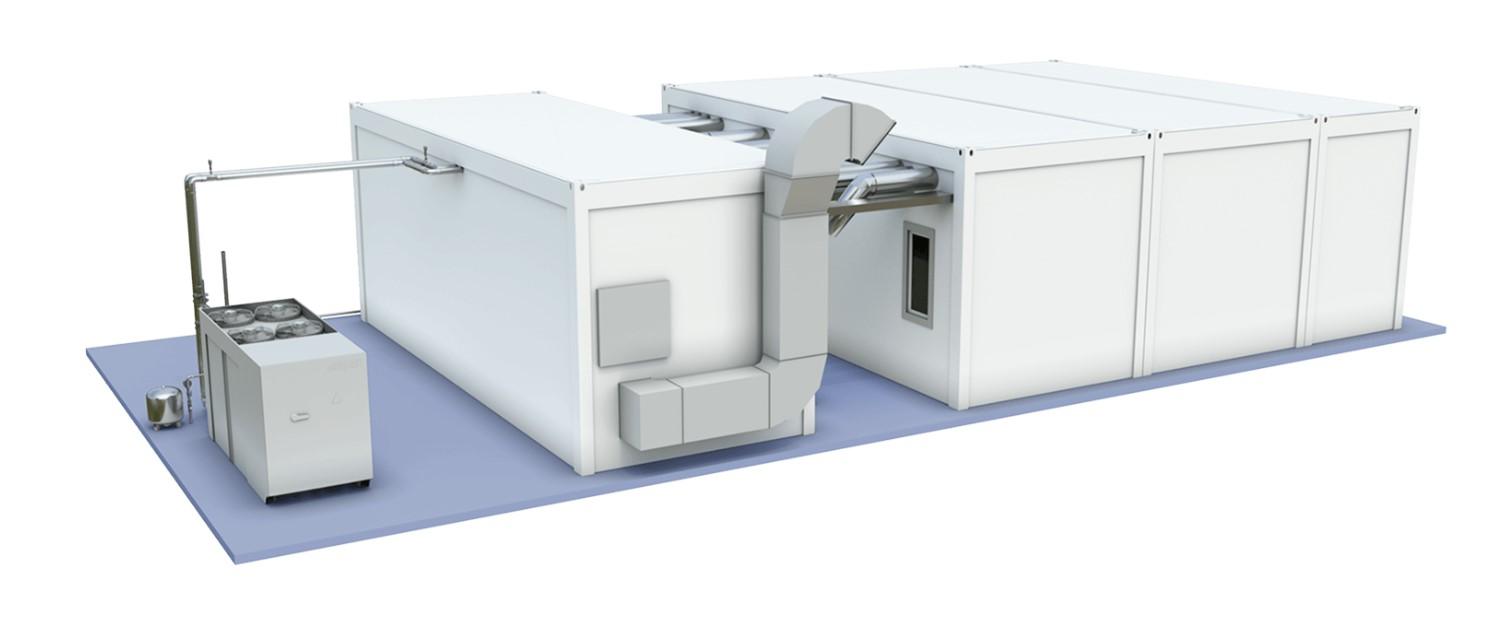

Cleanroom modules

Unmatched Flexibility of Cleanroom Environments

ISO cleanroom standards determine the modules of the NAYA Life Sciences cleanroom system. Facilities can choose from standard, technical, ready-to-buy, and floorless modules. The floorless module combines seamless integration with unmatched flexibility. This innovative solution reduces installation time and costs compared to traditional methods and is easily reconfigurable to adapt to changing needs.

The module was engineered without a built-in floor, allowing installation at the same elevation as the existing floor. By eliminating extensive floor preparation or modifications, adding a robust structural system, and establishing cleanroom ISO classes, NAYA Life Sciences ensures that facilities can maintain strict hygiene and compliance standards.

Naya LS Modular Cleanrooms Meet Different ISO Cleanroom Standards

Cleanroom environments need to achieve a specific classification. Engineers at Naya LS design regulated rooms around the required airborne particle-control level. Prefabricated modular solutions are fully customizable and can be adapted to operational workflows. They are designed to accommodate different requirements, layouts, and workflows. The company engineers rooms for various cleanliness classes by defining contamination-control requirements and integrating enclosure, HVAC, filtration, airflow management, and automation around the required particle-control performance.

Cleanroom ISO classes provide a clear framework for regulating airborne particle levels in controlled environments. Selecting the right classification depends on the process, product, and required hygiene standards. With suitable design, monitoring, and maintenance, businesses can maintain consistent conditions and support reliable production.
