Tunnel Dryer Delivers Reliable Performance through Smart Design

A tunnel dryer is engineered to handle continuous operation while complying with strict quality standards. By regulating drying conditions throughout the entire tunnel, it delivers reliable results for large production volumes. Drying equipment features carefully engineered components that control heat movement, airflow, and drying conditions to ensure consistent performance.

Tunnel drying is a process that maintains stable conditions through proper air balance. This balance is important because items entering the apparatus usually contain higher moisture levels and require stronger evaporation conditions. As they move through the machine and approach the exit, they require more controlled finishing conditions to achieve consistent results.

Tunnel Drying and Maintaining Stable Internal Temperatures

A tunnel dryer must maintain a stable internal temperature to achieve consistent results. Temperature fluctuations can affect process quality, increase processing times, and create unnecessary energy consumption. NIEROS® machines maintain stable internal temperatures through a combination of robust construction, efficient insulation, precise temperature management, and automated process control. Effective airflow management is the foundation of temperature stability, which is particularly important in settings where hygiene and repeatability are essential. Heat must be distributed evenly throughout the chamber to prevent temperature variations. If circulation is poorly controlled, some areas may become warmer while others remain cooler.

Precise heating control creates a stable internal environment. The apparatus often operates for extended periods, meaning it must continuously regulate temperature while production continues. Heat and temperature stability are supported by high-quality insulation, which reduces heat loss from the chamber. When heat loss is minimized, drying equipment can maintain its operating temperature while using less energy. Automated controls and adjustable parameters further support stable performance and provide operators with greater control over drying conditions.

Internal Drying Equipment Baffle Design for Improved Air Distribution

Tunnel drying solutions from NIEROS® feature an internal baffle system, a vital component that controls airflow inside the machine. Heated air must reach every item at a consistent temperature, velocity, and direction to achieve uniform moisture removal. When airflow becomes uneven, quality can decline, energy consumption can increase, and production consistency can become difficult to maintain. The baffle system is designed to guide airflow through the chamber, reduce turbulence, regulate pressure differences, and ensure that air reaches every section of the conveyor.

The internal baffle is a structural component within the airflow system of a tunnel dryer. Without proper guidance, significant portions of the airflow could bypass certain areas while concentrating in others. The internal airflow concept centers on controlled circulation rather than unrestricted movement. Air is heated before entering supply ducts and channels. From there, it passes through specially engineered openings that distribute it evenly across the conveyor. Internal baffles divide, redirect, and balance these air streams before they reach the items. This carefully managed circulation cycle improves drying efficiency while reducing unnecessary energy losses.

Air Balance Adjustment for Stable Drying Conditions

A tunnel dryer has balance adjustment controls that determine how air moves through different zones. Air balance adjustment refers to the process of regulating the movement, volume, and distribution of air inside the equipment. The apparatus uses fans, heating systems, ducts, and exhaust systems to create controlled airflow around the items being dried. Balance is achieved by adjusting airflow parameters within different areas of the tunnel. As moisture levels change while products move through the system, each zone may require specific airflow configurations.

The airflow system maintains controlled pressure inside the machine. Humid exhaust air, fresh supply air, and recirculated air work together to create stable conditions. Dampers are another component that regulates airflow through supply and exhaust channels. They allow operators to fine-tune air distribution between different sections of the system. Air balance adjustment depends on production speed, item characteristics, and environmental conditions, making precise control essential for consistent performance.

Tunnel Drying with the Highly Sophisticated Drying Solution ABT IBC

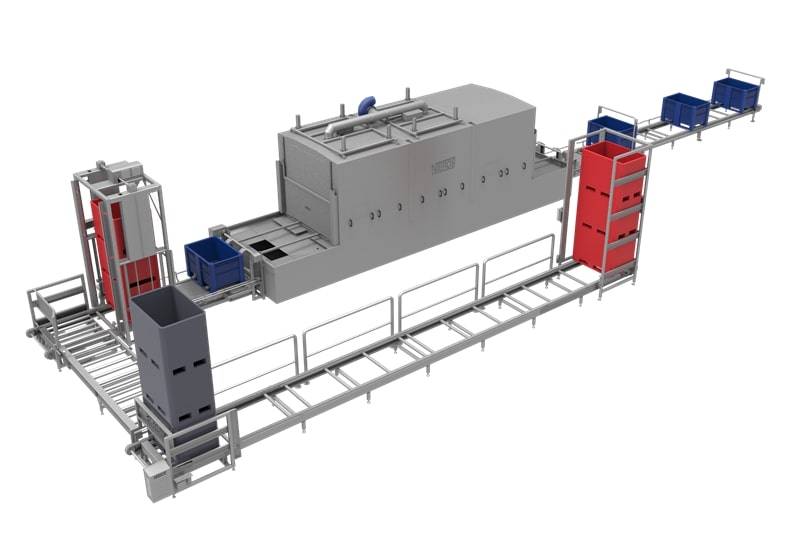

The ABT IBC tunnel dryer completely dries metal items such as euro bins and stainless steel IBCs. A nozzle system directs accelerated air onto the items, efficiently and quickly removing residual water and moisture. The tunnel accommodates up to 50 items per hour, with maximum dimensions of 1380 × 1160 × 1680 mm. Thanks to its innovative engineering and modular design, it can operate as a standalone or integrated unit.

Whether improving product consistency or increasing production capacity, equipment delivers dependable results where they matter most. Through smart engineering and advanced technology, the apparatus provides a faster, more structured, and more reliable solution for demanding industries worldwide.

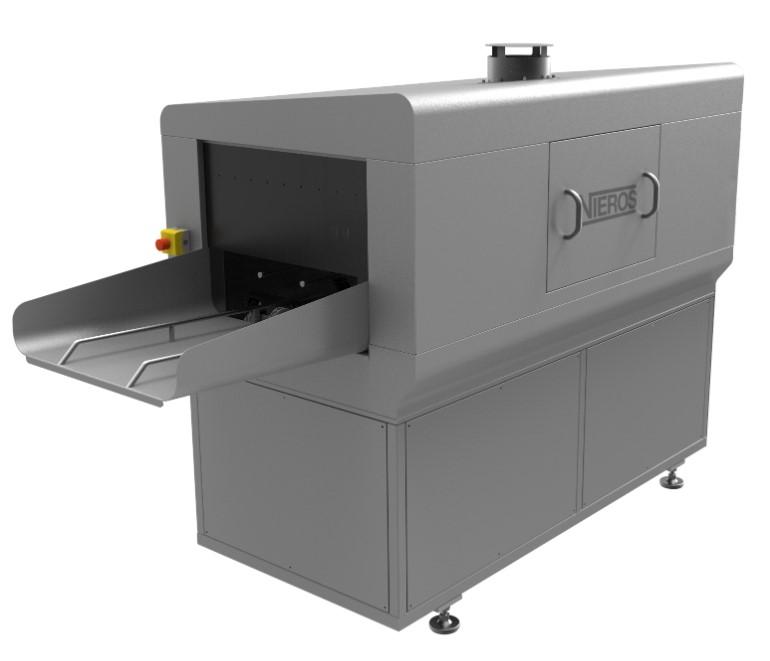

Blow-off Drying Equipment ABT B

A tunnel dryer is just one of the machines in NIEROS®'s broad range of industrial drying solutions. The Blow-off Machine ABT B uses a specialized airflow system to effectively remove residual water. When the water used to wash the items reaches 85 °C, more than 90% of the moisture can be removed. The standard model can accommodate up to 1,500 Euro stacking containers and crates per hour. With a smooth surface finish and height-adjustable design, the solution is suitable for a wide range of industries. Its modular design and customization options allow it to operate as a standalone unit or as an integrated solution with any tunnel washing machine.

An industrial dryer provides the consistency and efficiency needed to support today's demanding production environments. Improving tunnel drying performance and maintaining stable processing conditions help businesses achieve consistent, high-quality results while supporting efficient and reliable production.
