Ribbon nozzle ensures stronger bonds at cost-effective price

Ribbon nozzle is a specialised dispensing tool for applying solvents, caulk, and other liquids. It allows for flat, uniform, and precise application. It is also known as a flat nozzle, because it dispenses a flat-shaped bead rather than a traditional round bead. A flat tip spreads fluid across a broad surface area in a thin, controlled ribbon-like strip.

At first glance, the nozzle seems to be quite simple; however, it is precisely engineered. One of the most critical parts of engineering is geometry. The ribbon nozzle is engineered to shape the material as it is dispensed, ensuring consistent distribution across the surface. This controlled flow not only maintains a uniform bead shape but also minimizes the formation of air pockets within the material. The result is a smoother, more reliable application, which is critical for achieving strong bonds and clean finishes.

They come in various shapes and sizes, depending on industry and application needs. Due to their unique shape, they offer several advantages, including enhanced bonding strength, increased material and time efficiency, better sealing capacities, and excellent aesthetic appeal. They are manufactured from high-quality high-density polyethylene (HDPE), a material known for its excellent chemical resistance, structural reliability, and long service life. This ensures a consistent performance under demanding conditions and resists degradation from solvents, sealants, and other harsh substances.

Does ribbon nozzle geometry affect flow, pressure or strength?

The geometry of a ribbon bead nozzle plays a crucial role in application performance. The flat shape is achieved with an extraordinary combination of pressure manipulation and internal flow dynamics. In fluid engineering, precise flow control is essential for maintaining efficiency, stability, productivity, and safety. The geometry plays a critical role in achieving these outcomes. When liquid enters the nozzle, the shape of the cavity influences the direction, velocity and pressure.

The geometry determines flow characteristics and pressure zones. When liquids pass through a confined space, they are typically under high pressure. In a ribbon bead nozzle, the liquid flattens through compression. Flow characteristics depend on temperature, viscosity, and the liquid’s properties.

Key variables such as temperature, pressure, and the nozzle’s exit geometry (slit) significantly influence the final output. Among these, temperature resilience is especially critical in design, as it helps accommodate changes in material viscosity, ensuring stable and consistent flow under varying conditions. Ultimately, geometry is one of the most influential factors in determining how a dispensing tool performs.

A ribbon bead nozzle will help achieve uniform bond lines

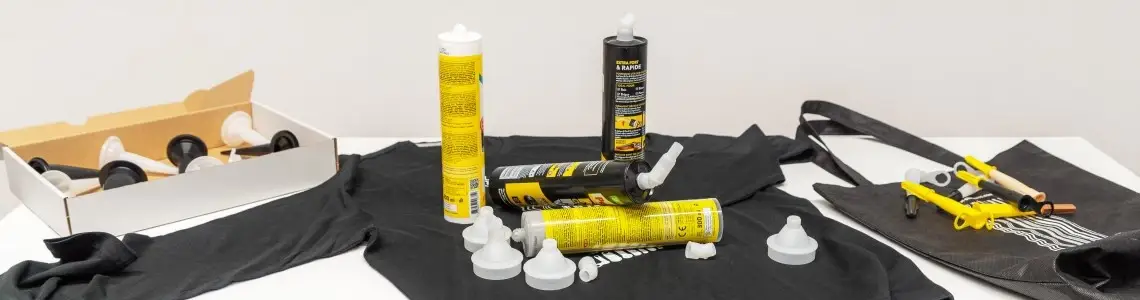

A ribbon nozzle is compatible with cartridges, dispensers, and foil bag systems. It was made for large-scale tasks where precision is of utmost importance. Sopi d.o.o. manufactures different models, including a flat nozzle for thread S15 and M15 in sizes of 2 mm x 10 mm, 2 mm x 20 mm, and 2 mm x 30 mm. Their size creates a ribbon that is 2 mm thick and up to 30 mm wide. Due to their groundbreaking engineering, they work perfectly with bulk, quart, sausage, and standard cartridge guns.

Manufactured from high-density polyethylene (HDPE), these nozzles are ideal for dispensing a wide range of materials, including adhesives, pastes, gels, sealants, solvents, silicones, greases, and other compounds. They are supplied without a clip and have a weight range of approximately 2.7 g to 3.8 g, depending on the specific model. Standard packaging is provided, with alternative packaging options available upon request. The products are manufactured with a general tolerance in accordance with DIN 16901-150 and comply with DIN 16742 or other agreed-upon standards.

Fluid-dispensing tools ensure consistent application, provide exceptional material efficiency, enhance accuracy and flow control, and have a space-efficient design. They can be manufactured for different fluids, which supports continuous operation and reduces downtime.

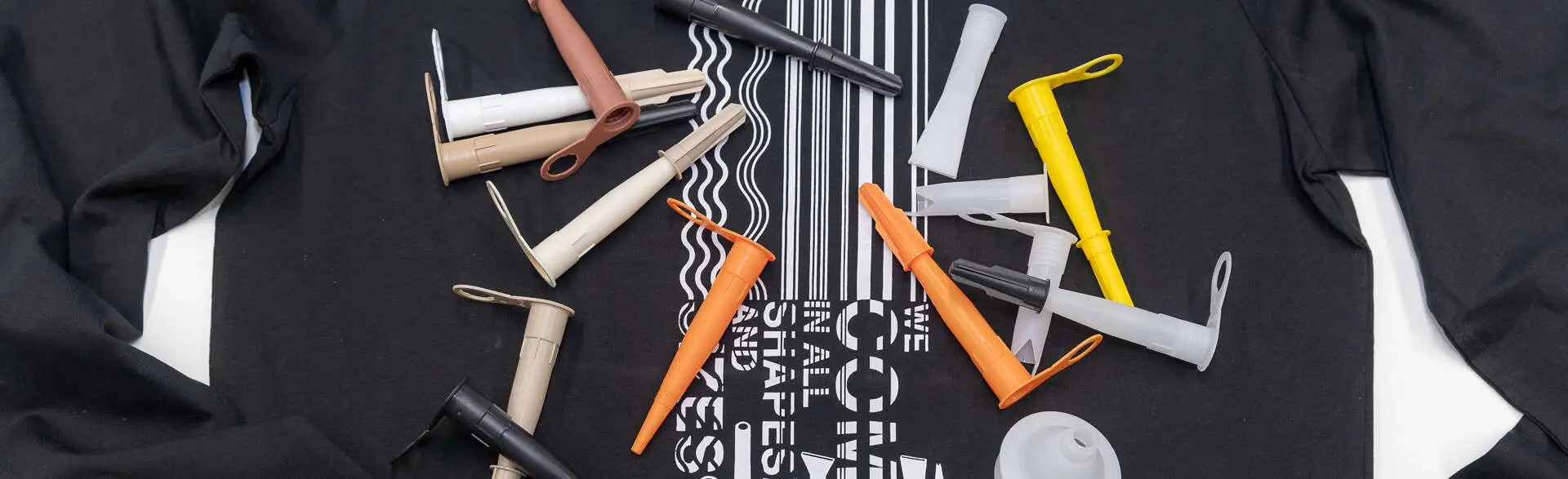

dispensing plastic nozzle

High-quality tailor-made ribbon nozzles at a competitive price

Ribbon bead nozzles by Sopi d.o.o. are a highly engineered product at an affordable price. The company specialises in technical solutions for the chemical, personal care and food industry. They are known for premium tailor-made dispensing solutions, which are designed and manufactured in the Nozzle Design Lab, which is equipped with state-of-the-art equipment, transforming a rough sketch into a final design. Their lab and expert craftsmanship enable them to provide customised solutions at a cost-effective price. The lab allows them to offer comprehensive solutions, including design, engineering, development, prototyping, and 3D printing.

Every product undergoes extensive testing throughout the manufacturing process. This rigorous approach allows engineers to continuously refine and optimize each design, ensuring that the final product meets the highest standards of quality, performance, and reliability.

A ribbon bead nozzle outperforms round tips in linear applications

Ribbon nozzles are essential tools across a wide range of industries, including construction, pharmaceutical, beauty, aerospace, automotive, marine, and general manufacturing. They play a vital role in any environment where precision, evenness, and consistency in material application are critical. Each nozzle is carefully designed and engineered to maintain the correct ribbon shape during dispensing, ensuring reliable and uniform coverage in demanding industrial applications.

Flat dispensing attachments are available in a broad range of standard sizes and can also be custom-engineered for specific applications. Sopi d.o.o. operates an in-house laboratory equipped with advanced 3D technology, enabling rapid prototyping and flexible, high-precision manufacturing.

When designing a flat dispensing tool, key factors such as material selection, fluid dynamics, flow control, efficiency, pressure resistance, and overall performance must be carefully considered. Thanks to the versatility of HDPE, these attachments are highly customisable, allowing for tailored solutions that meet the exact needs of each application.

Extensive solutions provide the users with versatility, durability, and reliability. Their design maximises coverage with minimal pressure loss, allowing for efficient application and outstanding operational savings from reduced fluid waste.
