Technical description, Futura® TL

External dimensions:
- length 8300 mm,
- width 2435 mm,
- height 2350 mm + height of the hatch 500 mm
Dimensions of the drying chamber:
- gross volume 19 m3
- length 6000 mm,
- width 2200 mm,
- height 1550 mm.
Dimensions of the front gate:
- width 2200 mm,
- height 2020 mm.
Dimensions of the sideway control gate
- width 625 mm,
- height 1300 mm.
Weight: total weight of the drying machine 3500 kg
Deadweight 5000 kg.
Dimensions of the loading on the trolley ready for drying
- length 5800 mm,
- width 2100 mm or 2 x 1050 mm,
- height 1400 mm on the trolley.
The total electric power of drying machine:
- Electrical Coupling 8 kW,
- average consumption by 4 kW/h.
The temperature of drying: up to 46 °C.
Anti-fungus
- fumigation : 60-62 °C.

Description of the equipment

Drying machine Futura® is in the form of a standard container with the front loading gate and the sideway control gate:

- personal computer with monitor for management of drying machine

- software for controlling and monitoring drying on the PC computer

- color printer for printing graphical demonstration of drying process.

- drying regimes for few basic types of conifers and deciduous wood, fumigation

- measuring probes for relative humidity in the wood - 4 pieces,

- movable outer tracks for trolleys,

- trolley, two pieces (2 pieces),

- ventilation strips of stainless inox plates for space length 950, width 32, height 16 mm (200 pieces).

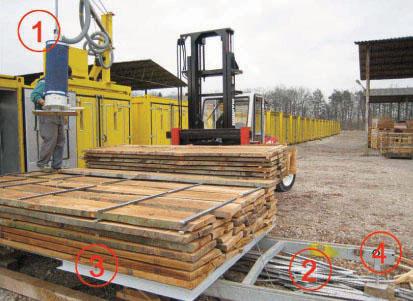

Accessories

1 - pneumatic lift hand - mobile

2 - ventilation strips of wood for space

3 - trolley

4 - loading tracks - mobile

Wood drying kiln Futura

All references to the values in the presentation are relative!
