Quick soldering tips are crucial for a stable and high-quality result

Quick soldering tips are a crucial part of soldering equipment. Soldering is a technique of joining two metal surfaces electrically and mechanically using a metal called solder. The metal creates a secure and stable connection so the components do not get loose due to mechanical or vibration forces. This method can attach a wire or any other components onto a printed circuit board or two wires together.

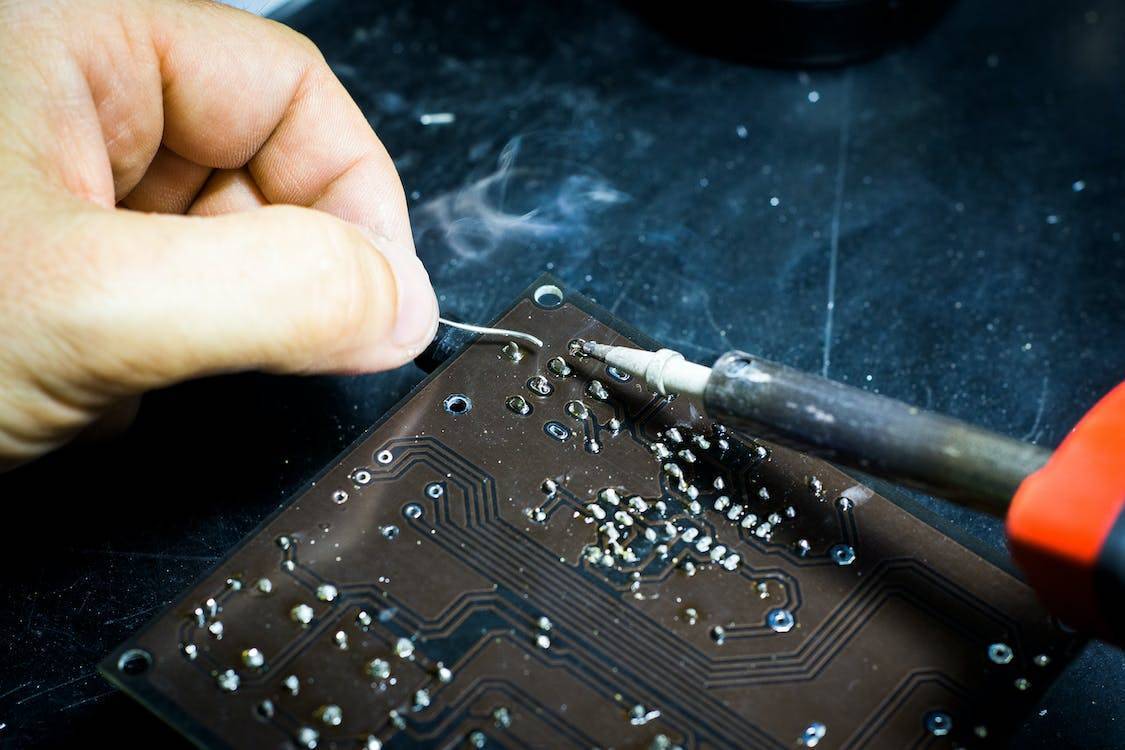

There are different ways to attach the components. The two most common are using a soldering iron or a wave soldering machine process. Iron is a hand tool capable of reaching the melting point of the solder. It consists of a metal tip, an insulated handle allowing safe holding, and a heating element. The latter has a copper interior (an efficient thermal conductor), transferring the heat from the heating element to the work area. The metal tip shape is paramount as it can make a difference in the result.

They come in various shapes and sizes, so choosing the right one will ensure the best possible thermal conductivity. The second method of joining two elements is PCB wave soldering, a part of printed circuit board (PCB) assembly for surface mount and through hole-mounted components. This technique utilises a distinctive machine and is best for mass production.

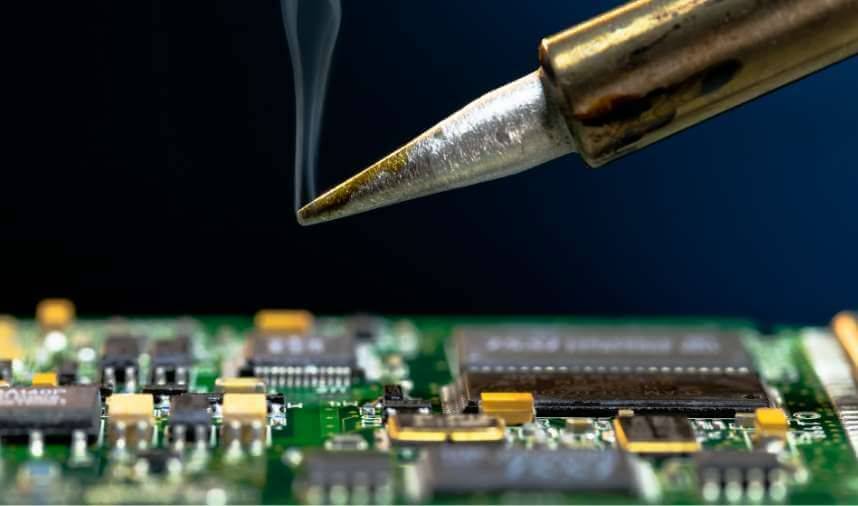

Quick soldering tips

How to select quick soldering tips to guarantee the best results

The wave soldering machine process is a highly economical and efficient procedure that cannot always be a part of electronic assembly. When there is a need for accuracy, the experts use the iron station and carefully selected quick soldering tips. There is no universal standard for the tips - the companies create their own based on their needs. Getting the correct size for the intended job is essential. The small tip may not be as effective in transmitting enough heat to the board, and a bigger tip can transfer too much heat. A compatible top will maximise the contact surface area and prevent damage to the board.

While PCB wave soldering is used in mass production, the key to this method is exactness, meaning the quick soldering tips must be in great shape at any given minute. One thing affecting their longevity the most is flux and lead-free soldiers combined with significant activity. Tips are made of copper-based alloys, giving the elements relative thermal conductivity. The copper is easily corroded and soft, so other meals like iron are used to plate over. Eventually, even iron will rust, slowing the process and scraping the tip. To increase the life span, clean the tip using special cleaning tools. It is also necessary to turn the iron station off. When left on, the tip stays heated at the temperature, further reducing its life.


PCB wave soldering guarantees high degree of reliability

PCB wave soldering is a structured process used in volume production. The electronics industry is evolving rapidly, so there is less time for highly experienced labour, such as manual attaching. The inventive procedure offers a straightforward and more affordable alternative. A printed circuit board production consists of a PCB passing over a pan of molten solder and attaching the elements to the board. At the start, the printed circuit board is fit and set up with spacers, which dissolve in the wash tanks. Then, the PCB is put on a conveyor belt with a pump positioned beneath it.

During the wave soldering machine process, the pump generates a wave-like motion of the molten liquid crashing onto the surface. At the start of the process, manufacturers adjust the wave height and speed of the conveyor belt to match the boards, giving them precise control over temperature and time. This procedure happens in a protective gas atmosphere with nitrogen and is finished in seconds. It is unique because it produces joints with a much higher reliability than quick soldering tips.

PCB wave soldering

How does the wave soldering machine process work?

PCB wave soldering is an essential process using an innovative machine. A stable connection between a pin and the surrounding pad quickly forms a conductive joint. Quick soldering tips must be thoughtfully selected when using an iron station. Equivalent to that in this procedure is following the steps, as they ensure excellent performance. The first step is flux application, where the flux is applied to the entire surface of the PCB. It is used to remove impurities from metal and to prevent forming new oxide layers. This step is crucial for good structure and joint generation.

The second step in the wave soldering machine process is preheating, aiming to bring up the printed circuit board to a high temperature to avoid thermal shock when it comes into contact with high temperatures. The third step is a wave solder. The boards are passed through a wave of molten liquid, and throughout the procedure, the temperatures are carefully controlled. That produces mechanically and electrically reliable joints. The last step of the procedure is cooling. During this step, the PCBs will slowly cool down to room temperature to avoid warpage of the boards.

wave soldering machine process
